SalesBridges Truck wheel guides 3000mm from steel
Truck wheel guides 3000mm from steel
7.274,00 PLN
SalesBridges

Truck wheel guides 3000mm from steel

PLN 7.274,00 Excl. tax
PLN 8.947,02 Incl. tax

Salesbridges offers you the wheel guide for trucks. The guide is modular, galvanized steel with a length of 3,000 mm and a height of 305 mm. It is an excellent additional protection and extra safety for docks and loading ramps. Available in yellow-black a

Backorder
4-8 weeks
Quantity
- +
Product description

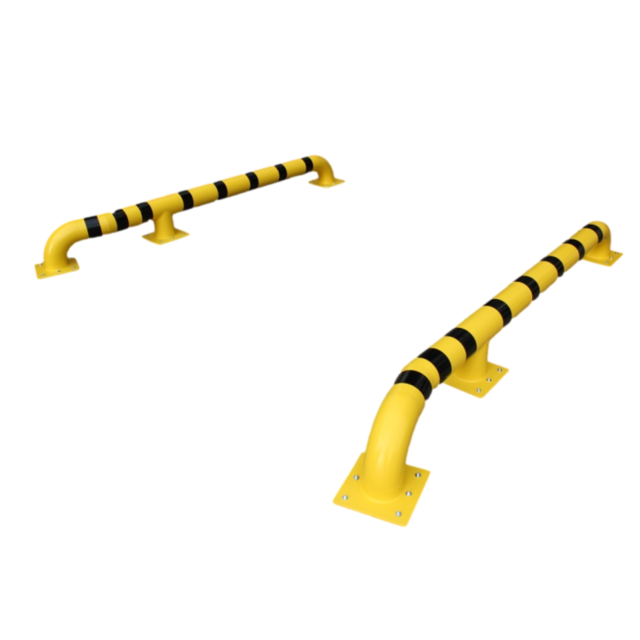

Truck wheel guides 3000mm

Salesbridges offers you the wheel guide for trucks. The guide is modular, galvanized steel with a length of 3,000 mm and a height of 305 mm. It is an excellent additional protection and extra safety for docks and loading ramps. Available in yellow-black and red-white. TÜV certified. Made in Europe

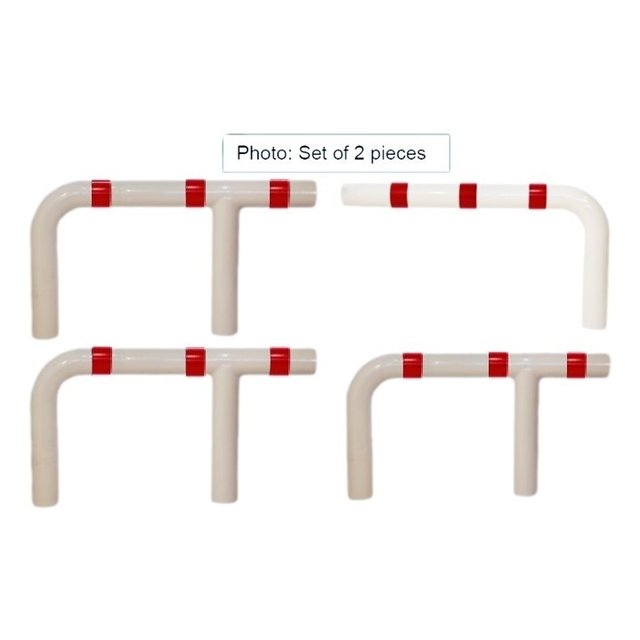

  • Set Right and left side – 4 barriers
  • Height 314.5 mm
  • *in concrete models SBWGYB3UG - SBWGRW3UG Height: 315 mm - 365 mm
  • Width 300 mm
  • Diameter 159 mm
  • Length:
    Single barrier length 1500 mm
    Total length of 2 barriers 3000 mm
  • Material: Galvanized and powder coated steel

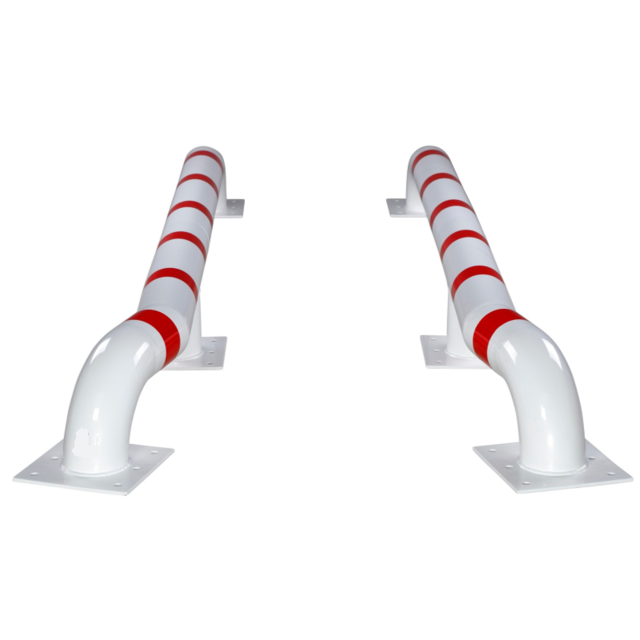

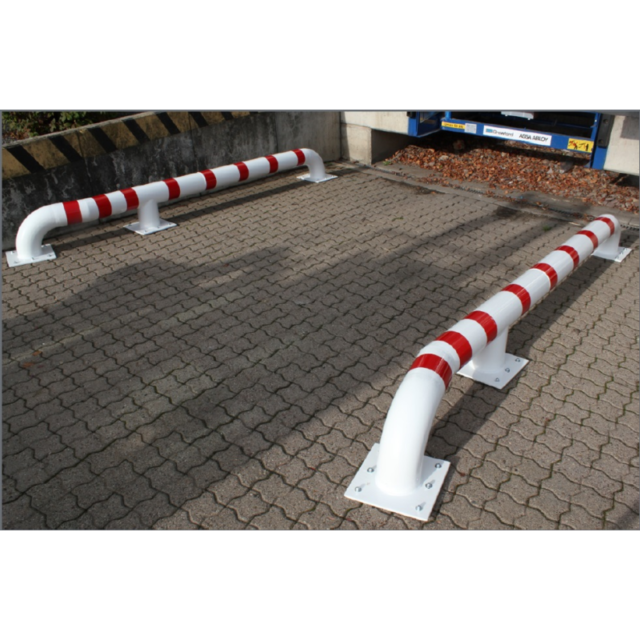

  • Color Yellow with black warn marking stripes or White and Red marking stripes
  • Material thickness 4.5 mm
  • Use: Indoor and outdoor

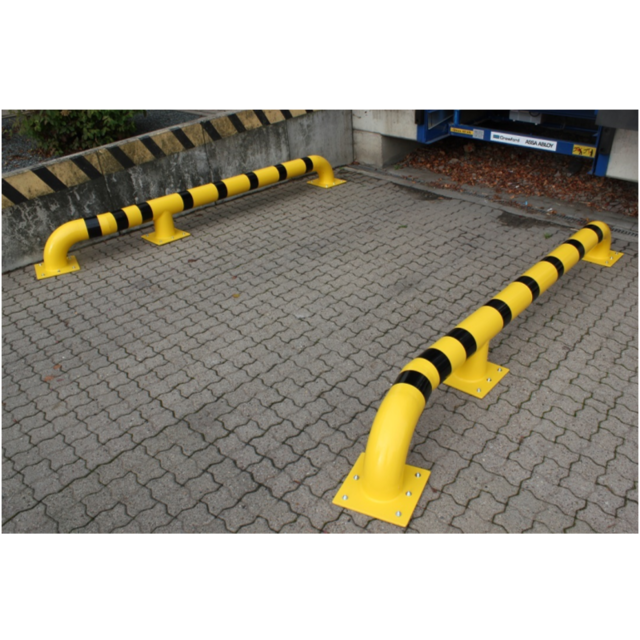

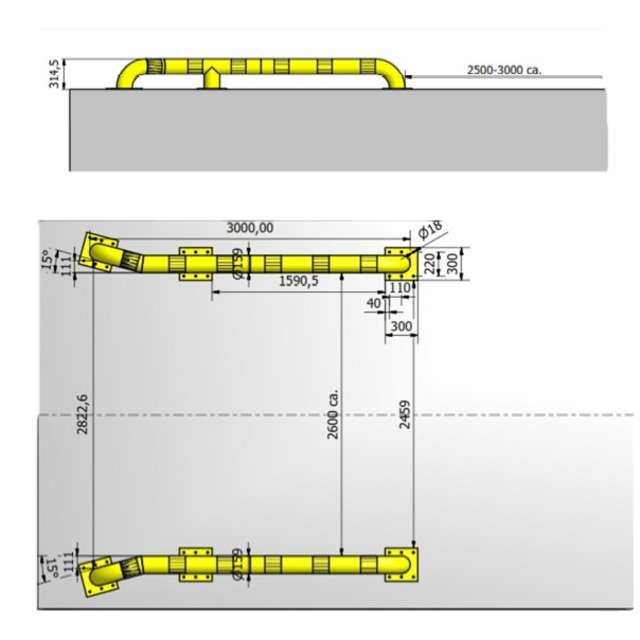

For ground mounting models (SBWGYB3G - SBWGRW3G) :

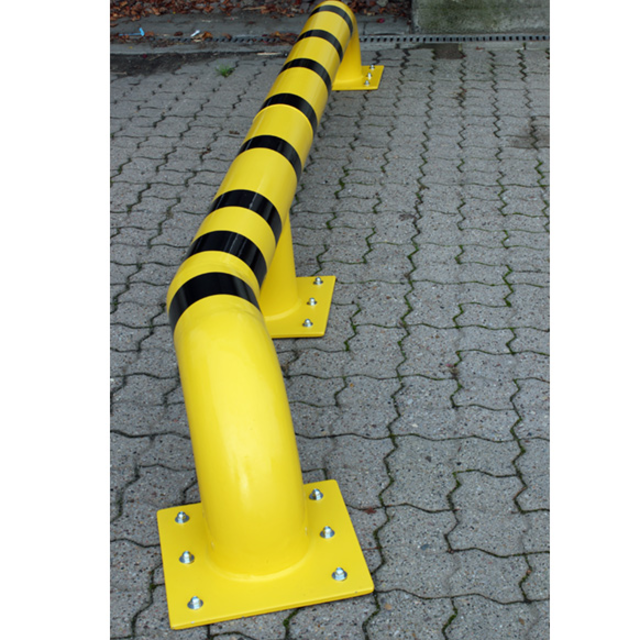

  • Bottom plate 300 mm x 300 mm x 10 mm (6x)
  • Boreholes 6x Ø 18 mm in each plate

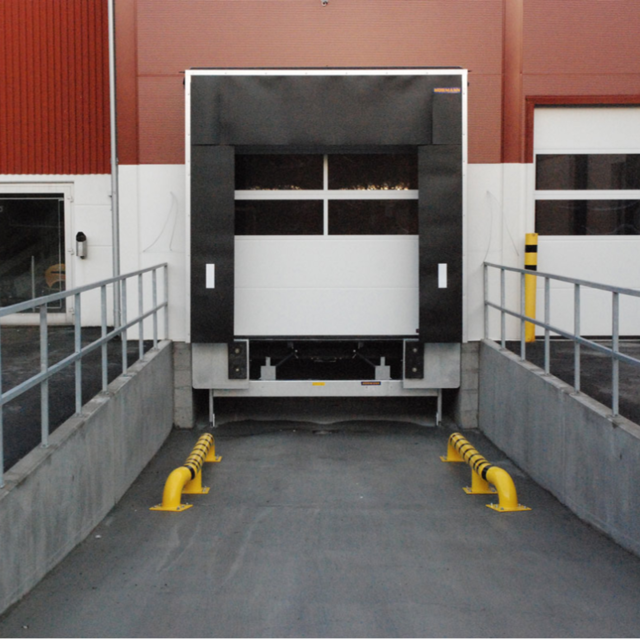

The modular truck positioning aid with yellow-black or red-white marking help the driver to safely and easily drive in and out the docking station as well as the docking process. The guide on loading ramps adds an additional protection to the surrounding buildings and dock structures.

The solid construction of the modular truck positioning is 159 mm in diameter and can be mounted with floor anchors or encased in concrete.



Article No.
Material
Size (Length, Width, Height)
Diameter
Size Base Plate
Weight
Ground mounting
SBWGYB3G
Steel
Length 3000 mm, Height above ground 305 mm
159 mm
300 x 300 mm
150 kg
SBWGRW3G
Steel
Length 3000 mm, Height above ground 305 mm
159 mm
300 x 300 mm
150 kg

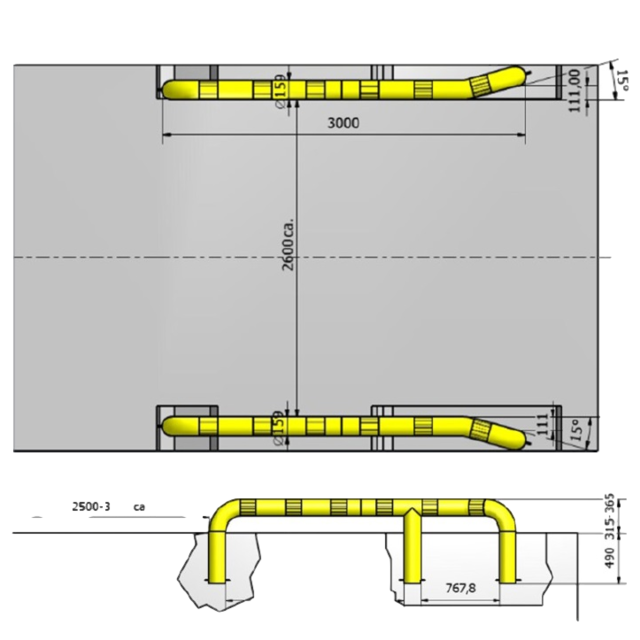

To set in concrete
SBWGYB3UG
Steel
Length 3000 mm, Height above ground 305 mm, Depth below ground 550 mm
159 mm
186 kg
SBWGRW3UG
Steel
Length 3000 mm, Height above ground 305 mm, Depth below ground 550 mm
159 mm
186 kg
Product information
Brand SalesBridges
Article code SBWGYB3G
SKU SBWGYB3G
EAN 9509571375896
